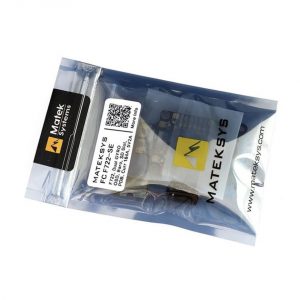

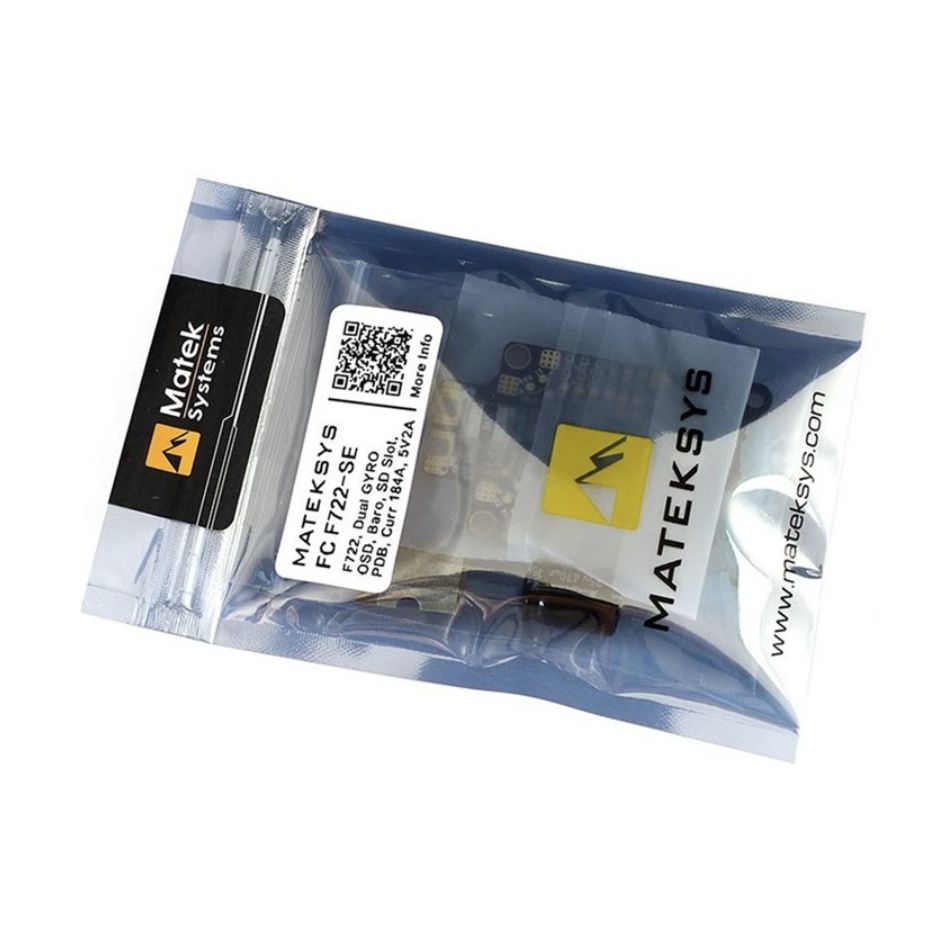

Matek System F722-SE F7 Dual Gyro Flight Controller for DIY Drones

PDB Specifications:
Input: 6 ~ 36V (3 ~ 8S LiPo) with TVS protection
PDB: 4x35A (Max.4x46A)
BEC: 5V 2A cont. (Max.3A)
LDO 3.3V: Max.200mA
184A current sensor (scale 179)
Battery voltage sensor: 1:10 (scale 110)

Characteristics :
5x Uarts (1,2,3,4,6) with integrated inversion
1x Softserial supported
8x Dshot / Proshot / oneshot outputs
1x I2C
4x RX6 pads (one per horn) for BLheli32 ESC telemetry
4x individual ESC power / signal pads
1x G / S1 / S2 / S3 / S4 pad group for 4in1 ESC Signal / GND
3x LED for STATUS (blue, green) and 3.3V indicator (red)
Vbat filtered output power for VTX, switchable via AUX (tab-user1 modes)
Dual Image Camera switchable via AUX (tab-user2 modes)
Camera control: Yes
Smartaudio & Tramp VTX protocol: Yes
WS2812 LED strip: Yes
Buzzer: Yes
RSSI: Yes
Additional ADC for analog speed INAV
